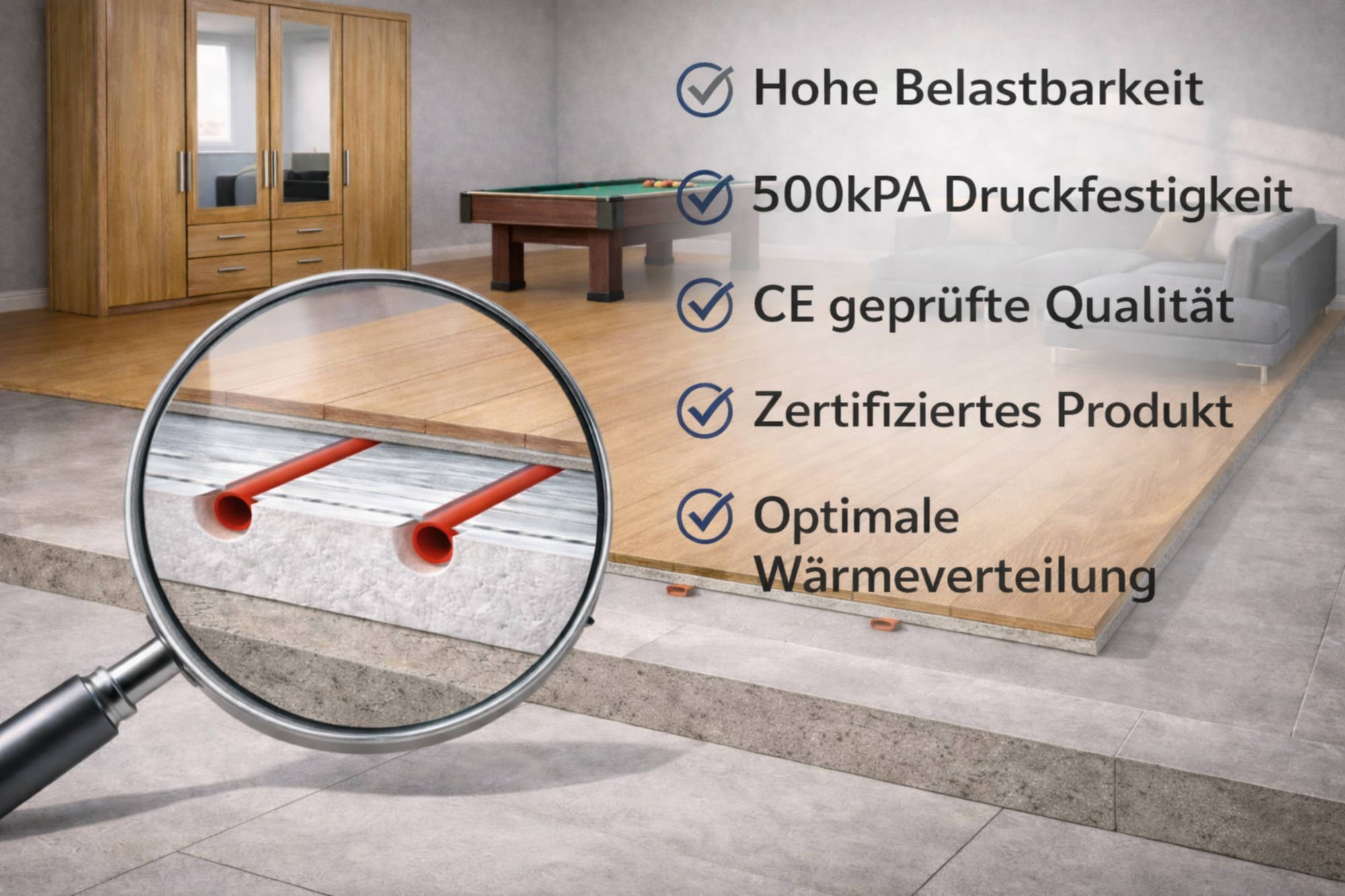

XPS insulation board with aluminum foil for underfloor heating without screed

Product No. EAN: 4070863663953

10 Years Warranty

XPS insulation board 120 × 60 cm - 30 mm - with aluminum foil

Ideal for underfloor heating without screed

XPS insulation boards with 500 kPa compressive strength

✅ Product description

Our high-quality XPS insulation boards with an aluminium surface have been specially developed for use in drywall underfloor heating systems without screed. Due to their high compressive strength, excellent insulation performance and the reflective aluminum foil, they enable efficient heat distribution and ensure optimal heating performance.

The panels are ideal for new buildings, renovations and renovations, especially in areas where a classic screed construction would be too heavy or time-consuming. Thanks to the lightweight design, the system can be installed quickly and cleanly, which reduces construction time and costs.

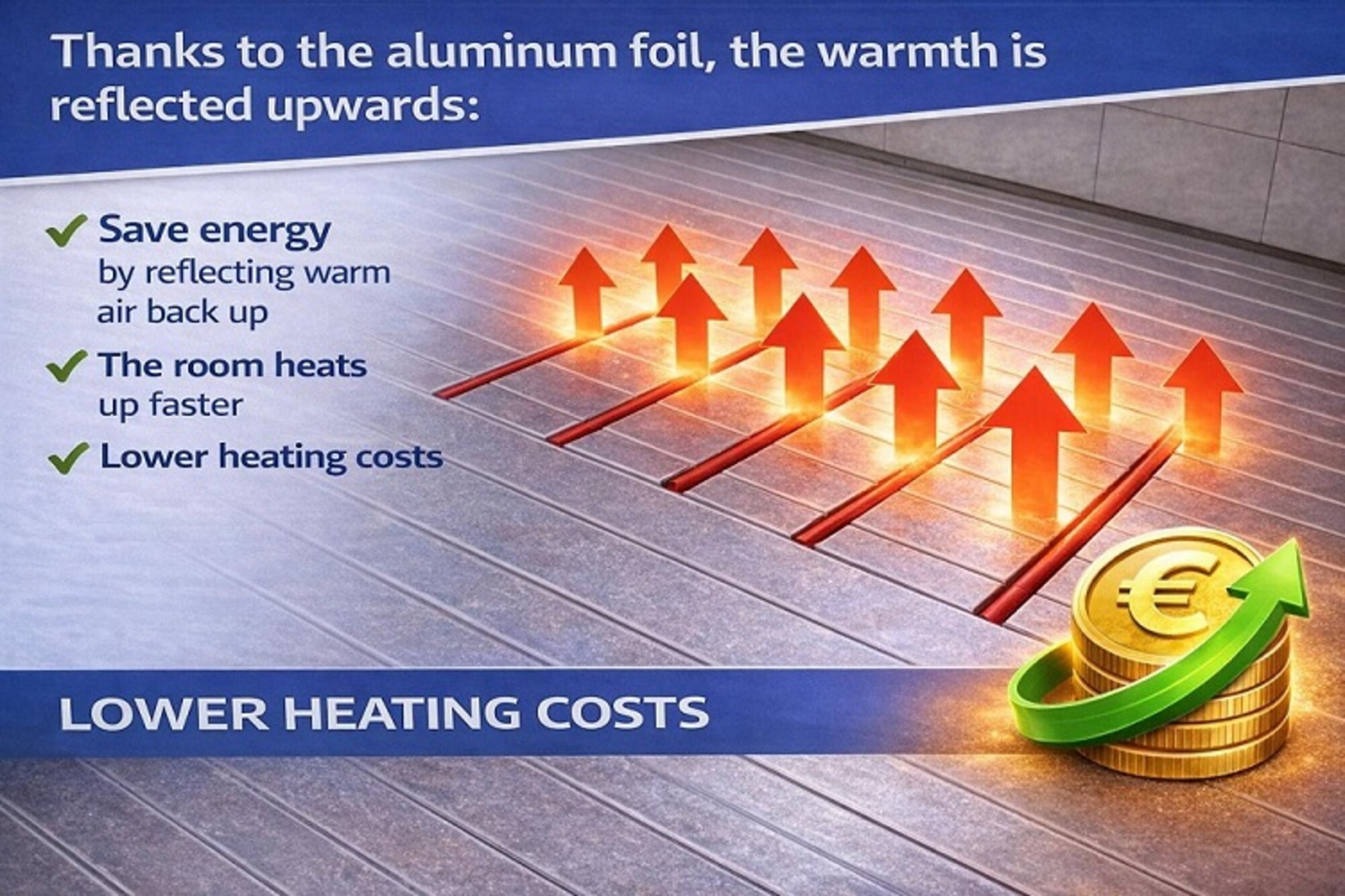

The aluminum lamination additionally improves the heat dissipation to the top and ensures a stable, durable surface.

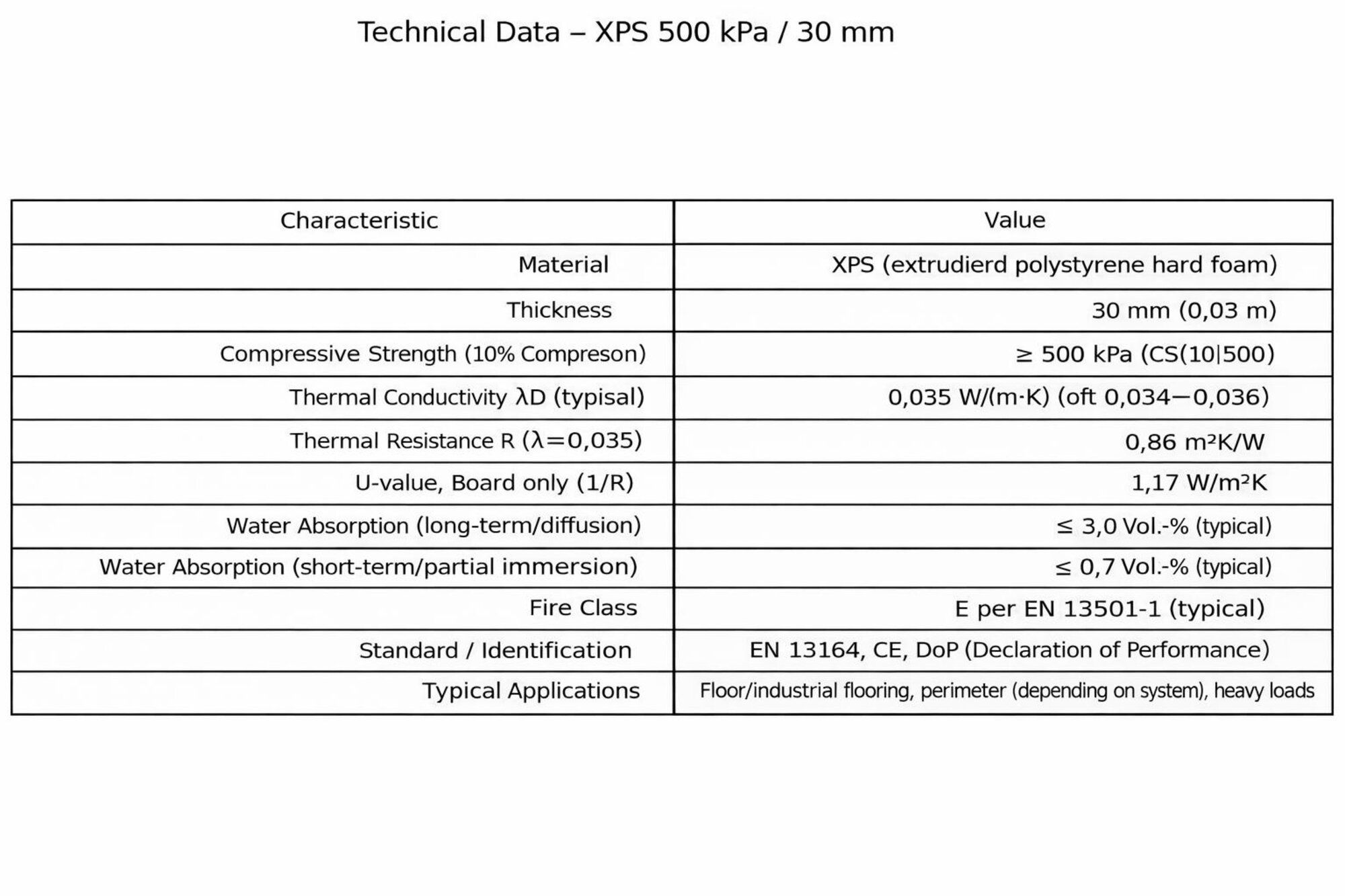

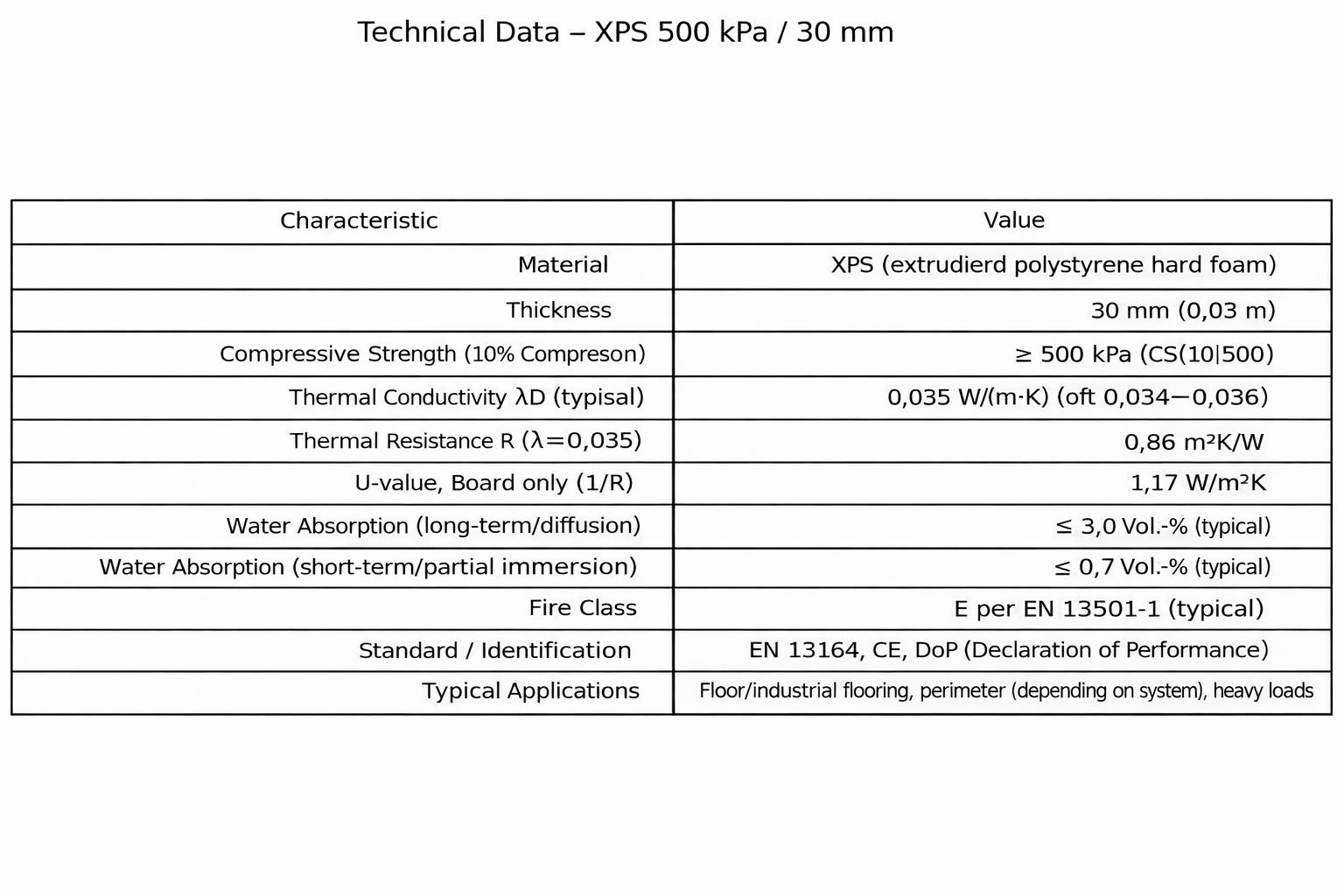

Dimensions: 120 × 60 cm
Thickness: 30mm
Material: XPS rigid foam (extruded polystyrene foam)
Surface: Aluminum laminated/coated
Compressive strength: 500 kPa
Usage: drywall underfloor heating without screed
Pipe compatibility: suitable for 16mm heating pipes

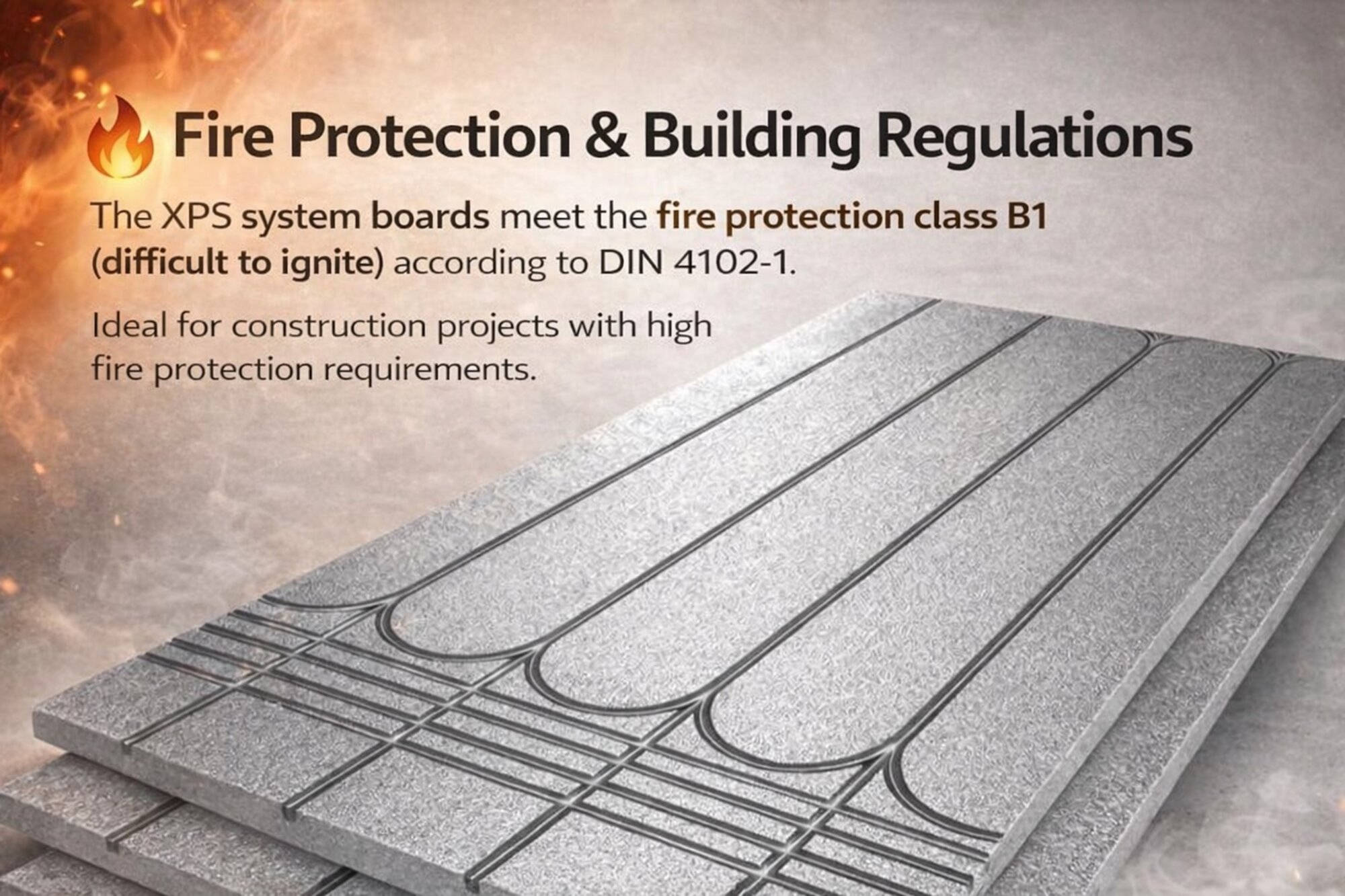

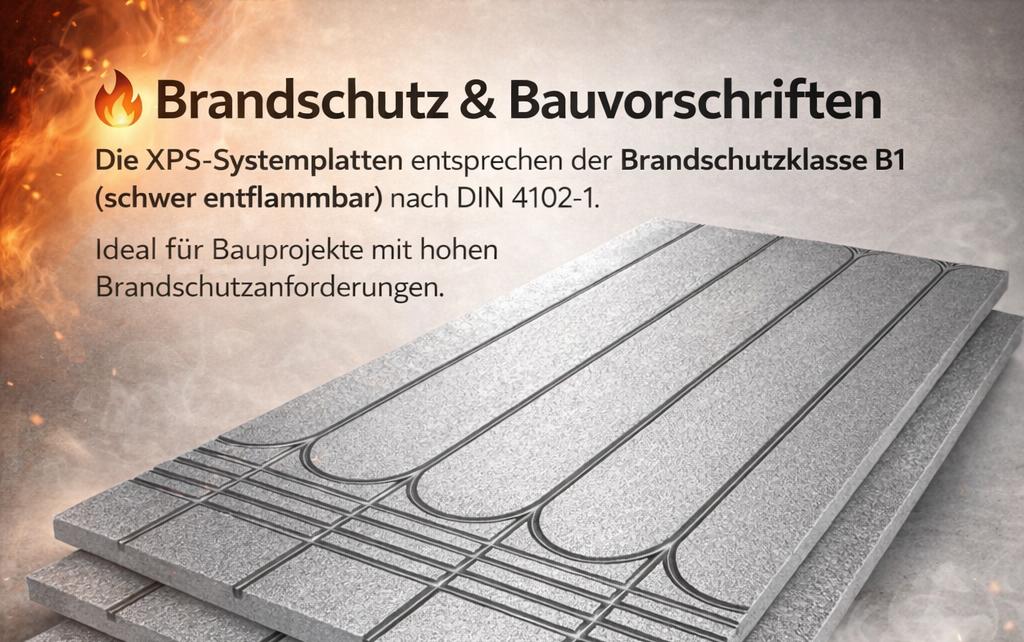

The XPS system panels meet important requirements in modern construction and are classified according to DIN 4102-1 in fire protection class B1 (flame retardant).

As a result, these panels are particularly suitable for construction projects with increased fire protection requirements.

Typical applications with fire protection requirements:
Hotels
Catering
Commercial properties
Office building
public buildings
In the system construction, a non-combustible ceiling construction can be realized, which makes it possible to take into account important requirements of the State Building Regulations (LBO) and the model building Regulations (MBO) in the field of fire protection.

This system is therefore particularly suitable for projects where fire protection requirements are required by the building authority or in the fire protection concept.


⭐ Property

✅ Efficient thermal insulation - reduces energy losses
✅ Moisture-resistant and water-repellent - ideal for bathroom and kitchen
✅ Mildew-resistant - durable and hygienic
✅ Fire protection class B1 according to DIN 4102-1
✅ High compressive strength of 500 kPa - stable and resilient
✅ Aluminum surface for optimal heat distribution

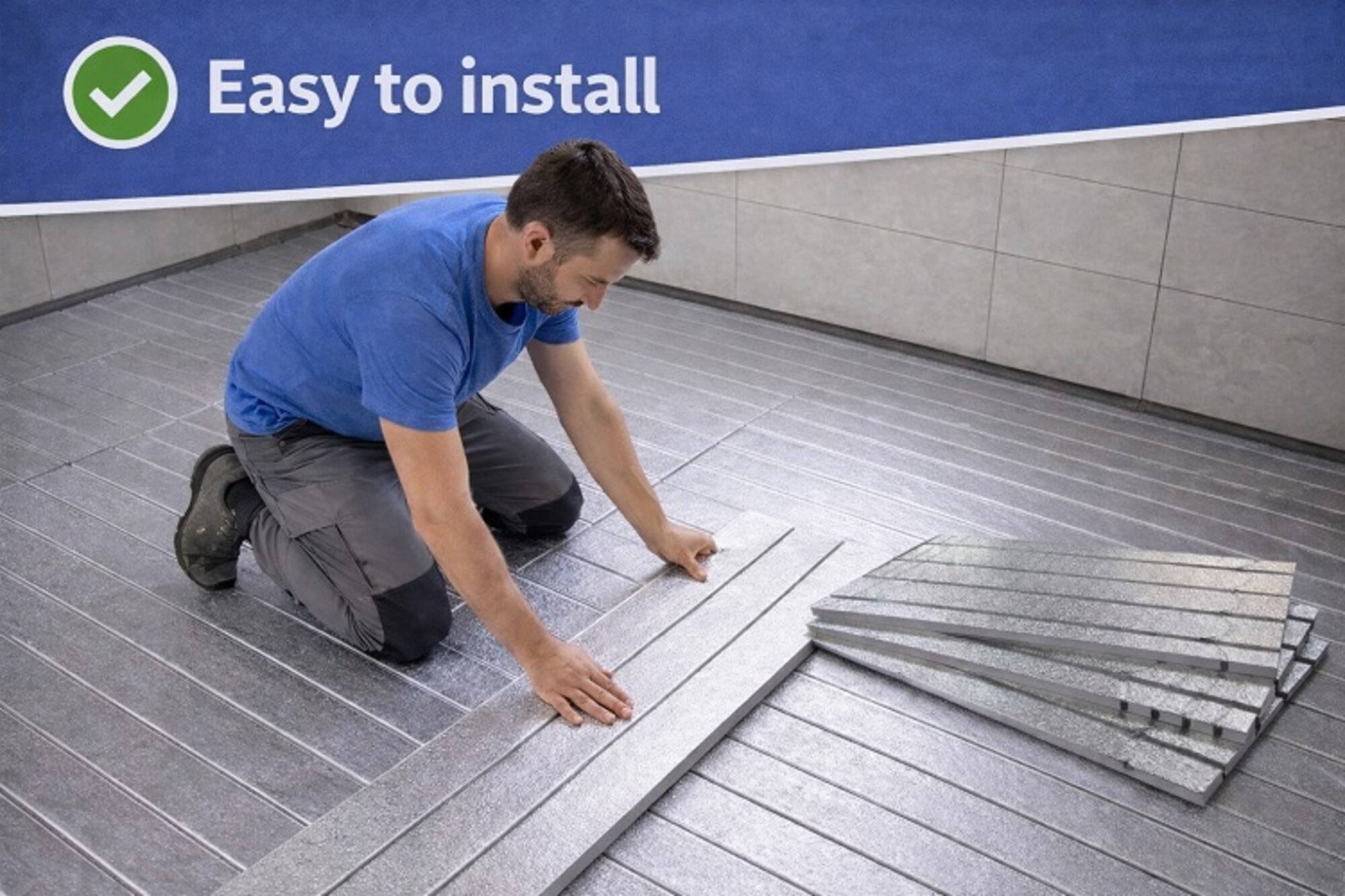

✅ Quick and easy installation
✅ Low installation height - ideal for renovations



Underfloor heating in the drywall system without screed
Renovation of old buildings
Attic extension
Wooden buildings and lightweight structures
Bathroom and kitchen
Living rooms and basements
energetic modernization of buildings
Due to its low weight, the system is particularly suitable for wooden ceilings, attics and statically sensitive buildings where screed would be too heavy.



The usual cost of screed per square meter (material + labor) is as follows:
Cement screed: approx. 12 - 20 &GBP;/m2
Anhydrite / self-leveling screed: approx. 14 - 25 &GBP;/m2
Dry screed: approx. 20 - 35 &GBP;/m2
In addition, in the case of screed systems, system panels for underfloor heating often still have to be laid. As a result, time and costs increase significantly - often to more than &GBP; 50 / m2.

With our XPS paving slabs without screed, several work steps are eliminated, which significantly reduces construction time and costs.


Technical advantages
suitable for underfloor heating without screed (drywall system)
Fire protection class B1 according to DIN 4102-1
compatible with DIN EN 13164 (XPS insulation materials)
suitable for energy-efficient buildings according to GEG
fast installation and short construction time
low weight and easy processing


The plates are also suitable for special applications, for example:
Underfloor heating in the attic or garden shed
Integration into drywall walls (wall heating)
Renovation of old buildings and listed buildings
After installation, tiles, laminate or other floor coverings can be laid directly on the system.

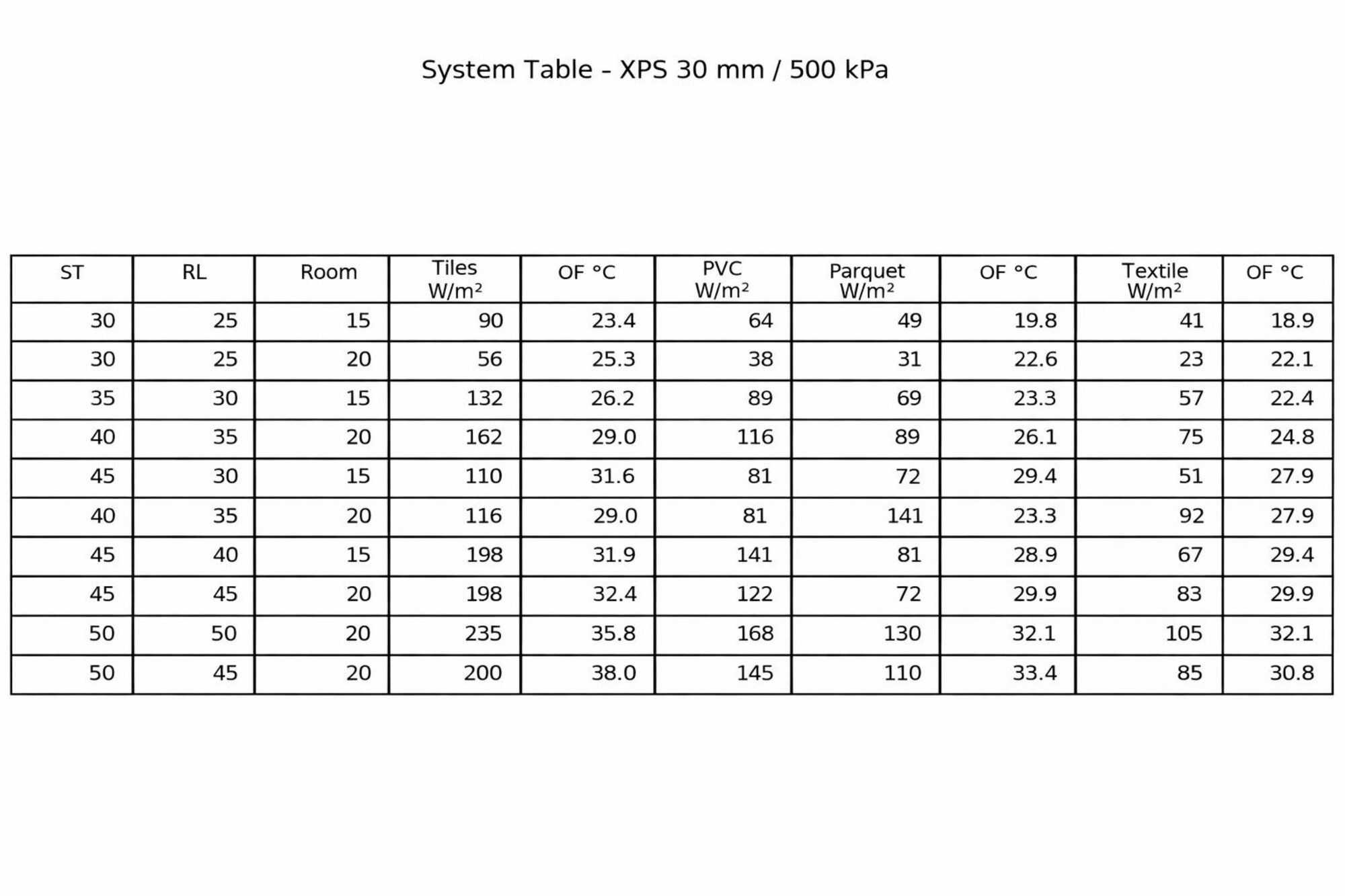

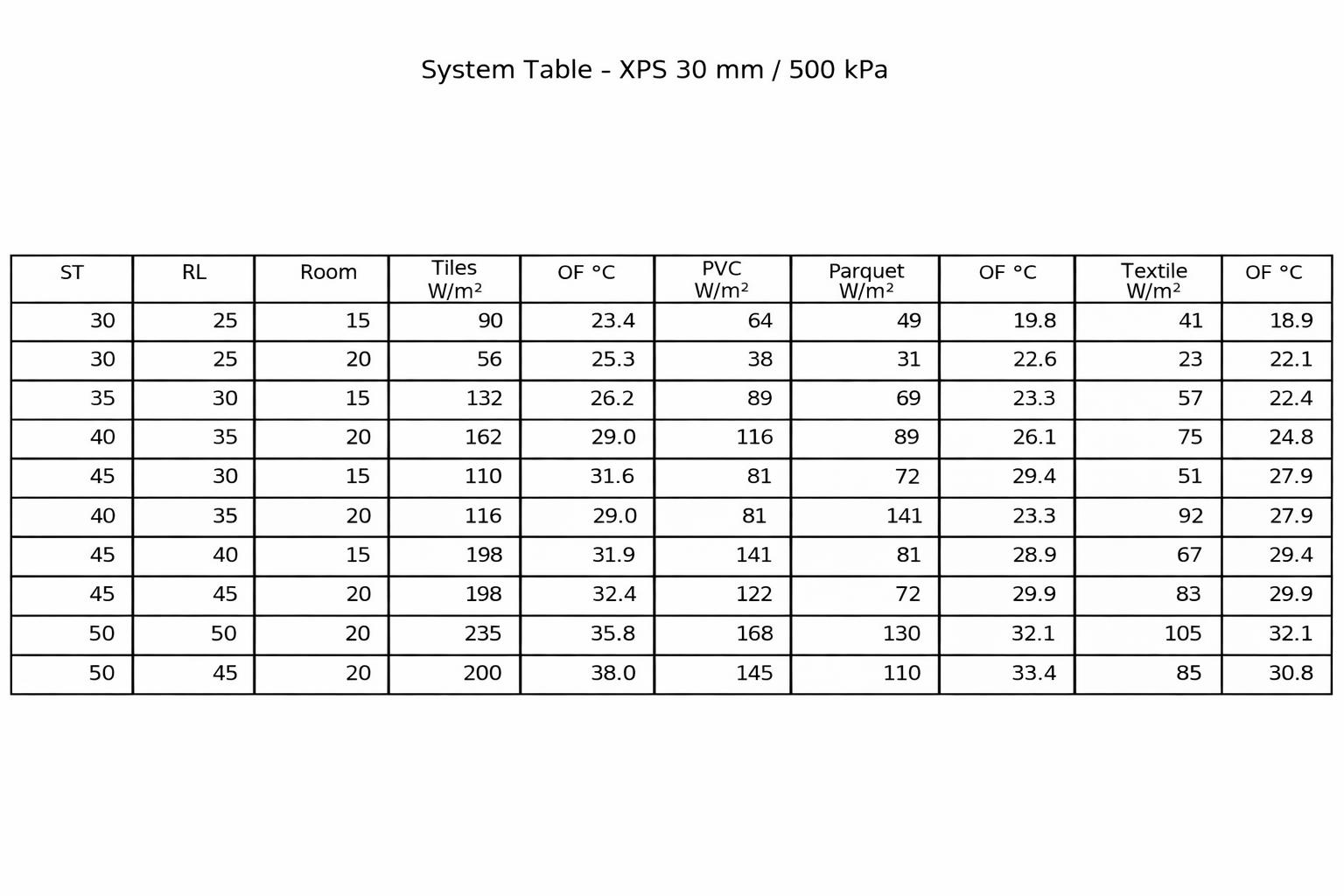

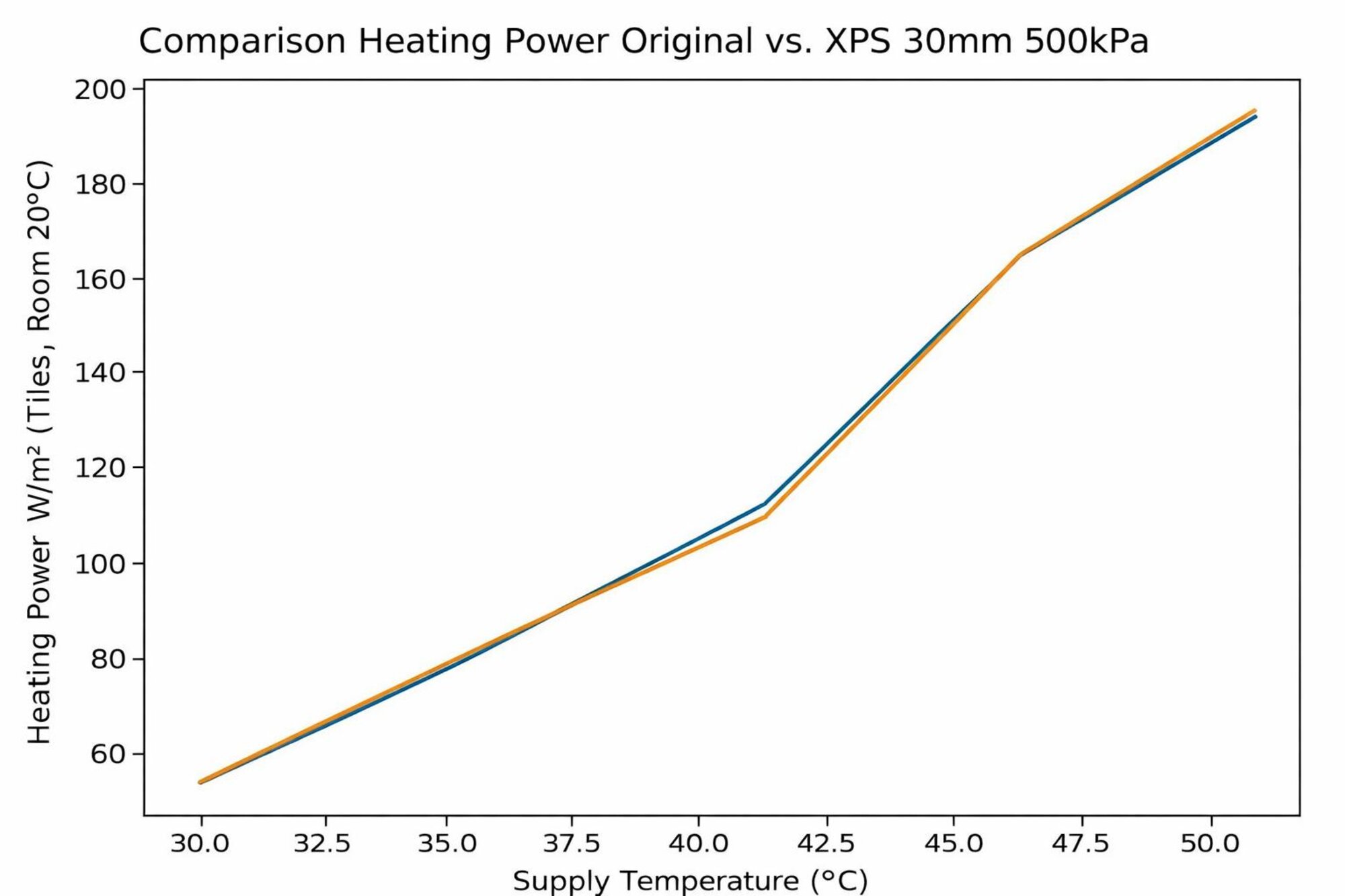

For optimal heating performance, we recommend combining it with 16 mm heating pipes and suitable system components to achieve uniform heat distribution and maximum efficiency.

For larger order quantities, we will be happy to make you an individual offer.



✨ Conclusion

The XPS panels for underfloor heating without screed (30 mm) offer a modern, efficient and economical alternative to classic screed systems.

The combination of high compressive strength, aluminum surface, fire protection class B1 and fast installation creates a powerful system that is particularly suitable for renovations, lightweight structures and construction projects with fire protection requirements.
